Revit Tip: How to Slope Horizontal Steel Beam

-

How to Slope Horizontal Steel Beam (with images)


 Issue:
You have an existing beam that has a level as its work plane. You want to set its work plane to be a sloped reference plane, but only the reference planes or levels parallel to the beam are available when you edit the beam.

Solution:
To make the existing steel beam align with a sloped reference plane.

Open an elevation or section view of the beam.
elevation-section

Draw a reference plane parallel to the beam/slab using the Reference Plane tool on the Basics tab of the Design bar and name it by editing the reference plane properties.

Select the beam.
select the beam

Click Edit Work Plane on the Options bar.
work plane

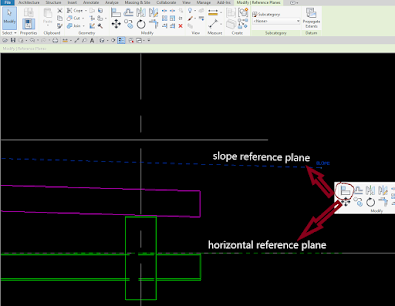

Select Name and select the reference plane that you just created from the drop-down menu and then click OK. Draw a sloped reference plane using the Reference Plane tool and name it.
reference plane

Click Align to align the horizontal reference plane to the sloped reference plane. That's it.
align to align

Bottom-line:
After you made it, you can copy the sloped beam one by one along the sloped reference plane.

Add'l Source: AUTODESK KNOWLEDGE NETWORK
