Revit Dynamo vs. Python Scripting: Choosing Your Automation Tool



Both Revit Dynamo and Python scripting are incredibly powerful tools for extending Revit's capabilities, automating repetitive tasks, and implementing complex design logic. While they can often achieve similar outcomes, they approach problem-solving from different paradigms and cater to different user profiles and project requirements. Understanding their strengths and weaknesses is key to choosing the right tool for your specific needs.

Introduction

This tutorial will guide you through the decision-making process, helping you determine whether Dynamo's visual programming environment or Python's text-based scripting approach is more suitable for your Revit automation goals.

Prerequisites

  • A basic understanding of Autodesk Revit.
  • A desire to automate tasks or extend Revit's functionality.
  • No prior programming experience is strictly required, as this guide aims to help you choose your learning path.

Steps to Choose Your Tool

Follow these steps to evaluate your needs and decide between Dynamo and Python scripting:

1. Define Your Objective

Start by clearly identifying the problem you want to solve or the task you want to automate.

  • Choose Dynamo if: Your goal involves repetitive tasks, data extraction and manipulation (e.g., retrieving parameters from elements, modifying element properties), geometric operations (e.g., creating adaptive components, arraying elements), or rule-based design (e.g., placing elements based on specific criteria). Dynamo excels at tasks that can be broken down into a series of visual steps.
  • Choose Python if: Your objective requires custom Revit API interactions that aren't readily available as Dynamo nodes, complex algorithms, creating sophisticated custom add-ins with user interfaces, integrating with external systems or databases, or when precise control over Revit's internal processes (like transaction management) is crucial.

2. Assess Your Comfort with Programming Paradigms

Consider your preferred way of thinking and learning about programming.

  • Choose Dynamo if: You prefer a graphical interface, where you connect "nodes" (pre-built functions) with "wires" to define data flow and visualise the process. Dynamo's visual programming environment is often more intuitive for visual thinkers and those new to coding, as it abstracts away much of the text-based syntax.
  • Choose Python if: You are comfortable with or want to learn text-based code, syntax, and object-oriented programming concepts. Python offers more granular control and flexibility, allowing you to write highly specific logic. If you have prior experience with any text-based programming language, Python will feel more familiar.

3. Evaluate the Complexity and Scope of the Task

The intricacy of the logic and the scale of the automation play a significant role.

  • Choose Dynamo if: Your task has moderate complexity. Dynamo is excellent for chaining operations and manipulating Revit elements within its visual environment. It can handle many complex geometric and data management tasks. However, very intricate conditional logic or deeply nested loops can lead to "spaghetti graphs" that are difficult to read and debug.
  • Choose Python if: Your task involves highly complex logic, extensive use of loops, advanced data structures, or deep interaction with the Revit API that requires precise control over objects and their methods. Python provides direct, unfettered access to the entire Revit API, making it suitable for tasks that push the boundaries of what's possible in Revit. Python scripts can also be embedded within Dynamo using a "Python Script" node, allowing you to combine the strengths of both.

4. Consider Maintainability and Collaboration

Think about who will use, modify, and maintain the automation in the long run.

  • Choose Dynamo if: The automation primarily targets users who are not programmers, or if the logic is relatively straightforward and needs to be easily understood and modified by non-technical staff. Well-organised Dynamo graphs can be easier for non-programmers to follow. However, version control for complex graphs can be challenging.
  • Choose Python if: The automation is part of a larger, more structured development effort, or if it needs to be maintained by a team of developers. Python code is typically more structured, easier to document, and highly amenable to standard software development practices like version control (e.g., Git), unit testing, and code review, making it more maintainable for large and complex projects.

5. Examine Performance Requirements

For very large datasets or computationally intensive tasks, execution speed can be a factor.

  • Choose Dynamo if: Performance is not the absolute top priority, or for tasks involving datasets of moderate size. While Dynamo is efficient, the overhead of its visual engine and node execution can sometimes make it slower than direct Python execution for extremely large or computationally intensive operations.
  • Choose Python if: High performance is critical. Python, especially when used for direct Revit API calls and optimised code, generally offers better execution speed for complex operations, particularly when dealing with thousands of elements or intricate calculations.

6. Leverage Existing Resources and Libraries

Consider what tools, packages, and communities are available to help you.

  • Choose Dynamo if: You want to leverage a vast ecosystem of "packages" (libraries of custom nodes) available through the Dynamo Package Manager. These packages extend Dynamo's functionality significantly, often allowing you to achieve complex tasks without writing any code. The Dynamo community is very active and supportive.
  • Choose Python if: You want to tap into the immense ecosystem of general-purpose Python libraries (e.g., NumPy for numerical operations, Pandas for data analysis, etc.) in addition to Revit-specific libraries (like those used with pyRevit or RevitPythonShell). This provides unparalleled power for data processing, analysis, and integration with external systems. Access to the full Revit API via Python offers the ultimate flexibility.

7. Think About Deployment and User Experience

How will others run your automation, and what kind of user experience do you want to provide?

  • Choose Dynamo if: Your graphs will be run directly within Dynamo, or more commonly, via the Dynamo Player. Dynamo Player provides a simplified interface for end-users to run pre-made graphs without needing to open the full Dynamo environment, making it ideal for quick, repeatable tasks.
  • Choose Python if: You want to create custom buttons directly within the Revit interface (e.g., using pyRevit), or develop full-fledged Revit add-ins (.DLLs). Add-ins offer the most seamless, integrated user experience, appearing as native Revit commands. This requires more development effort but provides the most robust and professional deployment. Python scripts can also be embedded within Dynamo graphs using the "Python Script" node.

Conclusion

The choice between Revit Dynamo and Python scripting is not always an either/or situation. Often, they complement each other. Dynamo can provide a quick, visual way to prototype ideas or handle most common automation tasks, while Python offers the power to tackle highly specific, complex, or performance-critical challenges that might be difficult or inefficient to implement visually.

Ultimately, the best choice depends on your specific project requirements, your existing skill set, your willingness to learn, and the desired outcome for your automation. Many advanced users find value in learning both, using Dynamo for quick visual tasks and Python for deeper, more customised solutions.

9.19.2025

How to Import CAD into Revit?

Importing or, more commonly, linking CAD files into Revit is a fundamental process for integrating existing design data, such as site plans, floor plans, or detailed drawings, into your Building Information Model. This tutorial will guide you through the recommended method of linking CAD files, which keeps your Revit project file size manageable and allows for easy updates if the original CAD file changes.

Introduction

Integrating CAD drawings into your Revit project can serve various purposes: using existing floor plans as a base for modeling, referencing site information for context, or incorporating specific details that might not be modeled directly in Revit. While the term "import" is often used generically, Revit offers two distinct methods: "Link CAD" and "Import CAD." Linking is generally preferred as it maintains a connection to the original CAD file, allowing for updates, whereas importing embeds the CAD data directly into your Revit project, increasing file size and losing the live link. This tutorial will focus on the more flexible "Link CAD" method.

Prerequisites

  • Revit software is installed and running.
  • A CAD file (e.g., DWG, DXF, DGN) ready for use.
  • (Recommended) Ensure your CAD file is "clean" (purged of unnecessary layers, blocks, and linestyles), drawn to scale, and preferably has its origin (0,0,0) at a logical and known point.

Steps

1. Open Your Revit Project and Target View

  1. Launch Revit and open the project where you intend to bring in the CAD file.
  2. Navigate to the specific view where you want the CAD file to appear, such as a floor plan, site plan, or drafting view.

2. Access the "Link CAD" Tool

  1. Go to the Insert tab on the Revit ribbon.
  2. In the Link panel, click on the Link CAD button.

3. Browse for Your CAD File

  1. An "Import/Link CAD Formats" dialog box will appear.
  2. Navigate to the folder where your CAD file is stored.
  3. Select the desired CAD file (e.g., a .dwg file).
  4. Do not click "Open" yet. First, adjust the settings at the bottom of the dialog box.

4. Configure Link CAD Settings

Carefully review and adjust the following settings, as they are crucial for how the CAD file will appear and behave in your Revit project:

  • Colors:
    • Preserve: Keeps the original colors from the CAD file.
    • Black & White: Converts all CAD colors to black and white lines. This is often preferred for clarity in Revit.
    • Invert: Inverts the colors (useful if your CAD has a black background and you want it on Revit's white background).
  • Layers/Levels:
    • All: Imports all layers from the CAD file.
    • Visible: Imports only the layers that were visible in the CAD file's last saved state.
    • Specify: Allows you to choose which specific layers to import after clicking "Open." This is excellent for keeping your Revit model clean.
  • Import Units:
    • Auto-Detect: Revit attempts to determine the units from the CAD file.
    • Custom Units (e.g., Millimeters, Meters, Inches, Feet): Manually select the units. This is critical for correct scaling. Always verify or manually set this to match the units the CAD file was drawn in. If your CAD was drawn in meters, select "Meters." Incorrect units will result in an incorrectly scaled CAD link.
  • Positioning: This determines where the CAD file will be placed in your Revit project.
    • Auto - Center to Center: Revit centers the CAD file's extents to the center of your current Revit view. Good for quick, rough placement.
    • Auto - Origin to Origin: Aligns the CAD file's World Coordinate System (WCS) origin (0,0,0) with the Revit project's internal origin. Ideal if your CAD file is precisely located relative to a known origin.
    • Manual - Center: Allows you to manually place the CAD file by clicking its center point in your Revit view after clicking "Open."
    • Manual - Origin: Allows you to manually place the CAD file by clicking its origin point in your Revit view after clicking "Open."
  • Place at:
    • Current View: Places the CAD file only in the active view.
    • Select Level: Places the CAD file on a specific level, making it visible in all views associated with that level. This is generally preferred for floor plans and site plans.
  • Orient to View: If checked, the CAD file will rotate to align with the current view's orientation.

5. Execute the Link

  1. After configuring all desired settings, click Open.
  2. If you selected a "Manual" positioning option, you will need to click in your Revit view to place the CAD file. Otherwise, it will appear automatically based on your "Auto" positioning setting.
  3. The CAD file will now appear in your Revit project.

6. Pin and Adjust (Optional)

  1. The linked CAD file will typically be pinned by default to prevent accidental movement.
  2. To move, rotate, or scale the CAD link, select it, then click the "Unpin" icon (or type UP) on the Modify panel.
  3. Use the "Move" (MV) or "Rotate" (RO) tools to precisely position the CAD file.
  4. Once the CAD file is correctly positioned, it is good practice to re-pin it to lock its position and prevent accidental changes.

7. Manage Linked CAD Files

  1. To manage all linked CAD files in your project, go to the Insert tab > Manage Links button.
  2. In the "Manage Links" dialog box, navigate to the CAD Formats tab.
  3. Here you can:
    • Reload: Update the CAD link if the original file has been modified.
    • Unload: Temporarily hide the CAD link from all views without removing it from the project.
    • Remove: Permanently remove the CAD link from the Revit project.
    • Change Path: Update the file path if the original CAD file has been moved.

Conclusion:

Linking CAD files into Revit is a powerful way to leverage existing data and enhance your BIM workflow. By understanding the various settings, particularly "Import Units" and "Positioning," you can ensure your CAD data integrates seamlessly and accurately into your Revit project. Remember that linking is generally preferred over importing for better project performance and easier management of external data.

9.18.2025

How to Create a Revit Family: A Step-by-Step Tutorial

Introduction

Creating custom families in Revit is a powerful way to add unique elements to your projects, whether they are furniture, custom components, or specific building elements not available in the default library. This tutorial guides you through the fundamental steps of creating a basic parametric Revit family from scratch, enabling you to build flexible and intelligent components for your models.

Prerequisites

  • A working installation of Autodesk Revit.
  • Basic familiarity with the Revit user interface (Ribbon, Properties Palette, Project Browser).
  • An understanding of basic geometric shapes.

Steps

  1. Start a New Family

    • Open Revit.
    • Go to the "File" tab in the Ribbon.
    • Select "New" > "Family".
    • In the "New Family - Select Template File" dialog, navigate to your desired template folder (e.g., Imperial or Metric libraries).
    • Choose the most appropriate family template. For a generic object, "Generic Model.rft" is a good starting point. For specific categories like furniture, windows, or doors, select their respective templates (e.g., "Furniture.rft"). The template you choose determines the family's initial behavior and available parameters.
    • Click "Open".
  2. Understand the Family Editor Environment

    • You will be in the Family Editor, which resembles the project environment but features specialised tools for family creation.
    • You'll typically see pre-defined Reference Planes representing the origin and centerlines of your family in the "Ref. Level" (floor plan) view.
    • The "Create" tab in the Ribbon contains tools for creating geometry (Extrusions, Blends, Revolves, Sweeps, Void Forms).
    • The "Properties" palette will display the family's category and parameters.
  3. Save Your Family

    • It's good practice to save your family immediately.
    • Go to the "File" tab > "Save As" > "Family".
    • Navigate to a suitable location on your computer.
    • Give your family a descriptive name (e.g., "MyCustomDesk.rfa").
    • Click "Save". Remember to save frequently as you work.
  4. Establish Reference Planes and Parameters (For Flexibility)

    • Go to a Plan view (e.g., "Ref. Level") from the Project Browser.
    • From the "Create" tab > "Datum" panel, click "Reference Plane" (keyboard shortcut: RP).
    • Draw additional Reference Planes to define the boundaries or key features of your object (e.g., front, back, left, right edges of a desk). These planes will control the geometry's dimensions.
    • Use the "Dimension" (DI) tool to add dimensions between your Reference Planes. For example, add dimensions between the center Reference Plane and the left/right planes, and then make them equal using the EQ toggle. Add an overall dimension as well.
    • Select a dimension line. In the Ribbon, click "Create Parameter" (or select from the "Label" dropdown if a parameter already exists).
    • In the "Parameter Properties" dialog:
      • Name: Give it a clear name (e.g., "Length", "Width").
      • Parameter Type: Choose "Type" (the parameter value applies to all instances of this family type) or "Instance" (the parameter value can be different for each instance placed in the project). For most dimensions, "Type" is common.
      • Group Parameter Under: Select a logical group (e.g., "Dimensions").
    • Click "OK". Repeat this process for all desired dimensional parameters.
  5. Create Basic Geometry (e.g., an Extrusion)

    • Go to the "Create" tab > "Forms" panel, and click "Extrusion".
    • Use the drawing tools (e.g., "Rectangle") to sketch the profile of your extrusion in the current plan view.
    • Crucial Step: After drawing the sketch, use the "Align" (AL) tool to align each sketch line to its corresponding Reference Plane. Click the small lock icon that appears after aligning to lock the sketch line to the Reference Plane. This ensures the geometry will move when the Reference Plane's dimension changes.
    • Once your sketch is complete and locked to the Reference Planes, click the green checkmark "Finish Edit Mode".
    • Go to an Elevation view (e.g., "Front" or "Left") from the Project Browser.
    • You'll see your extrusion. Adjust its height by dragging the top/bottom grips, or by entering "Extrusion Start" and "Extrusion End" values in the Properties palette.
    • Again, Crucial: Create a new Reference Plane for the top or bottom of your geometry (e.g., "Top of Desk").
    • Add a dimension between the "Ref. Level" and this new Reference Plane. Label this dimension with a new parameter (e.g., "Height").
    • Align the top/bottom of your extrusion to this new Reference Plane and lock it.
  6. Test Your Family (Flex)

    • Go to the "Create" tab > "Properties" panel, and click "Family Types" (the blue box icon with an arrow).
    • In the "Family Types" dialog, locate the parameters you created (e.g., Length, Width, Height).
    • Change the values of these parameters and click "Apply".
    • Observe if your geometry updates correctly and maintains its constraints. If it doesn't, go back to the relevant view, check your alignments, and ensure all locks are engaged.
    • Click "OK" when you are satisfied with the flexibility.
  7. Set Family Category and Other Parameters

    • In the "Create" tab > "Properties" panel, click "Family Category and Parameters".
    • From the "Family Category" dropdown, select the most appropriate category for your family (e.g., "Furniture" for a desk, "Windows" for a window). This is critical for how the family behaves in a project, how it schedules, and how it is filtered.
    • Review other parameters like "Part Type", "Cut with Voids When Loaded", etc., and adjust as needed for your specific family.
    • Click "OK".
  8. Load into a Project and Test

    • If you don't have a project open, open one or start a new default project.
    • In the Family Editor, go to the "Create" tab > "Family Editor" panel, and click "Load into Project" (or "Load into Project and Close" if you're done editing).
    • Revit will switch to your open project.
    • Navigate to a suitable view (e.g., a floor plan or 3D view).
    • Place an instance of your family.
    • Select the placed family instance in the project.
    • In the Properties palette, you can modify any "Instance" parameters you created.
    • To modify "Type" parameters, click "Edit Type" in the Properties palette.
    • Observe how your family behaves and appears in the project environment. If you need to make further edits, select the family instance and click "Edit Family" in the Ribbon.

Conclusion

You have now completed the fundamental steps to create a basic parametric Revit family. This process of creating Reference Planes, adding parameters, creating geometry, locking it to the planes, and testing its flexibility forms the core of all family creation. With these skills, you can begin to create more complex and intelligent components to enhance your Revit projects.

3.14.2025

The Future of Construction: Integrating Building Information Modeling (BIM) with AI Technology

The construction and architecture industries are poised for a technological revolution, driven by integrating Building Information Modeling (BIM) with Artificial Intelligence (AI). This powerful combination promises to enhance efficiency, improve decision-making, and pave the way for innovative project management and design solutions. In this blog post, we'll explore the benefits, challenges, and future potential of integrating BIM with AI, drawing insights from industry reports, case studies, and expert opinions.

    Benefits of Integrating BIM with AI

  1. Enhanced Efficiency and Productivity: Integrating AI with BIM can significantly streamline construction processes. AI algorithms can automate repetitive tasks such as clash detection, data analysis, and report generation, allowing professionals to focus on strategic decision-making. This automation not only speeds up project timelines but also reduces the likelihood of human error.
  2. Improved Design Optimization: AI can analyze vast amounts of data within BIM models to optimize building designs. For instance, AI can suggest eco-friendly materials, optimal window placements for energy efficiency, and other design improvements based on historical data and predictive analytics. This leads to smarter, more sustainable building designs.

  3. Predictive Maintenance and Risk Management: AI-powered BIM can predict potential issues before they arise, enabling proactive maintenance and risk management. By analyzing data from sensors and historical performance, AI can forecast equipment failures, structural weaknesses, and other risks, allowing for timely interventions.

  4. Enhanced Collaboration and Communication: BIM already facilitates collaboration by providing a shared platform for project stakeholders. When combined with AI, this collaboration becomes even more effective. AI can provide real-time updates, predictive insights, and automated reports, ensuring that all stakeholders are on the same page and can make informed decisions quickly.

    Challenges of Integrating BIM with AI

    1. High Implementation Costs The integration of AI with BIM requires significant investment in technology and training. Smaller firms may find it challenging to bear these costs, which can be a barrier to widespread adoption.

    2. Data Security and Privacy Concerns Storing and sharing sensitive project data on cloud-based platforms raises security and privacy concerns. Ensuring robust data protection measures is crucial to mitigate these risks.

    3. Data Quality and Availability: AI relies on high-quality, consistent data to function effectively. In many cases, data within BIM models may be incomplete or inconsistent, posing a challenge for AI integration. Data curation and maintenance become critical to address this issue.

    4. Resistance to Change The construction industry has traditionally been slow to adopt new technologies. Resistance to change from stakeholders accustomed to conventional methods can hinder the integration of AI with BIM.

    Future Potential of BIM and AI Integration

    The future of BIM and AI integration looks promising, with several trends and advancements on the horizon:

    1. Generative Design: AI-driven generative design can create multiple design alternatives based on predefined parameters and constraints. This allows architects and engineers to explore a wide range of design possibilities and select the most optimal solution.

    2. Digital Twins: The concept of digital twins—virtual replicas of physical buildings—can be enhanced with AI to provide real-time monitoring and predictive maintenance. This can lead to more efficient building operations and lifecycle management.

    3. Smart Construction Management: AI and BIM integration can revolutionize construction management by automating scheduling, resource allocation, and progress tracking. This can lead to more efficient project execution and reduced delays.

    4. Sustainable Construction Practices: AI can help optimize construction processes to minimize waste and energy consumption, promoting sustainability in the construction industry.

    Conclusion:

    The integration of BIM with AI technology holds immense potential to transform the construction and architecture industries. While there are challenges to overcome, the benefits of enhanced efficiency, improved design optimization, predictive maintenance, and better collaboration make this integration a worthwhile investment. As technology continues to evolve, we can expect even greater advancements in BIM and AI, paving the way for a smarter, more sustainable future in construction.

    By staying informed about these developments and embracing the opportunities they present, professionals in the construction and architecture industries can position themselves at the forefront of this technological revolution.

11.06.2024

What is a DAO and why does it matter to AEC?

Introduction

Blockchain technology has revolutionized many industries worldwide, and the Architecture, Engineering, and Construction (AEC) industry is no exception. A significant innovation in this context is the DAO, which is a "Decentralized Autonomous Organization". A DAO is a blockchain-based organizational structure that operates decentralised, enabling transparent and collaborative decision-making and facilitating participatory governance. In this article, we'll explore what exactly a DAO is and why it's relevant and important to the AEC industry.

What is a DAO?

A DAO is an autonomous, organization-like entity that operates through smart contracts on a blockchain network. Unlike a traditional company, there is no hierarchical structure of power, nor the need for intermediaries such as managers or executives. Instead, decision-making is carried out collectively and transparently, through voting based on ownership of tokens or units of the DAO's native cryptocurrency. Smart contracts are self-executing protocols that govern how the DAO works by establishing rules and conditions that are followed automatically. These contracts are immutable and follow what was programmed, ensuring consistent and transparent governance.

Understanding a DAO

Similar to a vending machine, which operates automatically providing certain products for payment, a DAO would be an “optimized” version where instead of someone replacing the products or collecting the money, those who perform such functions are codes governed by the previously mentioned smart contracts.

How does a DAO work?

 A DAO is powered by the active participation of its members, who acquire tokens from the organization through purchase, work contribution, or other forms of contribution to the DAO ecosystem. Each owned token represents a share of ownership and influence in the organization. Important decisions affecting the DAO are made through voting processes, in which token holders have voting power proportional to the number of tokens they own. Proposals are presented, debated, and voted on by the DAO community, and implementation takes place according to the voting results.

Why do DAOs matter to AEC?

  • Decentralization and Transparency: The AEC industry often involves multiple stakeholders including architects, engineers, customers, and contractors. A DAO can allow for more fluid and transparent collaboration between these parties, avoiding asymmetric information and making processes fairer.
  • Improved Governance: DAOs provide a framework for decentralized governance, ensuring that important decisions are made through a democratic process. This can lead to better results and avoid excessive concentration of power.
  • Incentives through Tokens: By issuing tokens, DAOs can create incentive systems for members who contribute positively to the project, whether through innovative ideas, building efforts, or other types of contribution.
  • Smart Contracts for Automation: Smart contracts allow for the automation of processes and payments, ensuring that contractual obligations are fulfilled in a transparent and efficient manner.
  • Crowdfunding: DAOs can allow the crowdfunding of AEC projects, allowing the community to invest in ventures that they consider promising.

Risks

  • Security and Vulnerabilities: Security is a primary concern in DAOs. Smart contracts can contain errors or be maliciously exploited, leading to substantial financial losses. Past examples of hacks and flaws in smart contracts show that there are still challenges in securing DAOs.
  • Inefficient Governance: While participatory governance is one of the tenets of DAOs, achieving consensus can be challenging. Internal disputes and divisions can make it difficult to make efficient decisions, delaying the progress of projects.
  • Regulation and Compliance: The regulatory environment around DAOs is not yet fully defined. Changes in laws and policies can affect your operation and the use of cryptocurrencies can raise complex legal and tax issues.
  •  Absence of Human Resources: The lack of a central authority can be an advantage, but it can also lead to the absence of accountability in cases of mismanagement or inadequate decisions.
  •  Low Adoption and Awareness: DAOs are an emerging technology, and many professionals and investors still need to familiarize themselves with the concept. Low adoption can limit its potential impact on the AEC.
  • Volatility of Cryptocurrencies: Many DAOs use cryptocurrencies as a means of funding and governance, and these assets are known for their volatility. Abrupt price changes can negatively affect project funding and results.
  • Risk of Blockchain Forks: In the event of fundamental disagreements within the DAO community, a blockchain fork can occur, creating two distinct versions of the organization. This can lead to fragmentation and uncertainty about which DAO is the "true" one.

Conclusion

DAOs are emerging as an innovative form of organization in the AEC industry. Operating through blockchain technology and smart contracts, DAOs offer advantages such as transparency, decentralization, and participatory governance. However, it is important to consider associated risks such as vulnerabilities in smart contracts, challenges in participatory governance, regulatory issues, and cryptocurrency volatility. With a cautious approach and a balanced understanding, the AEC industry can explore the innovative potential of DAOs to drive efficiency and collaboration, while mitigating the challenges to fully reap the benefits of this emerging technology.

Posted Mon, July 31, 2023, by Gabriel Martins; BIM Heroes Member

Join us on the "BIM Heroes" community discussion platform. It's a place to connect, engage, network, share, teach, learn and grow with other AEC professionals interested in 'digital transition' and adoption of BIM.


3.21.2024

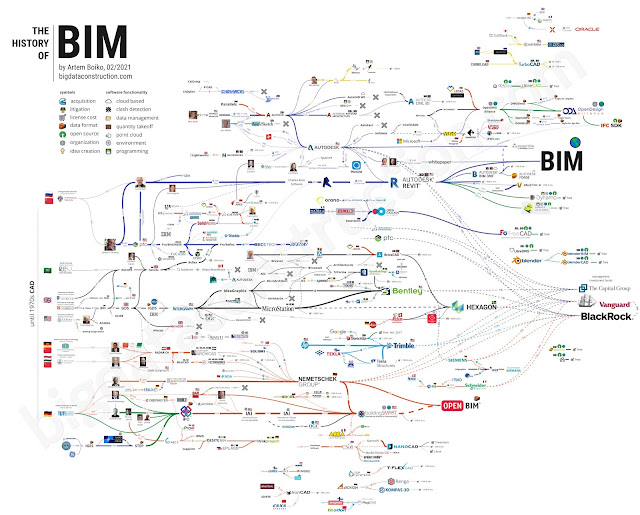

Revit Timeline

Before Public release – Charles River Software

  • 0.1 1999 11 (Early Adopter 1)
  • 0.2 2000 01 (Early Adopter 2)

Product released to Public – Revit Technology Corporation

  • 1.0 2000 04
  • 2.0 2000 08
  • 2.1 2000 10
  • 3.0 2001 02
  • 3.1 2001 06
  • 4.0 2001 11
  • 4.1 2002 01

Autodesk Revit

  • 2002 04 04 (Autodesk buys Revit Technology Corp)
  • 4.5 2002 05 09
  • 5.0 2002 12 17
  • 2003 04 28 (Zoogdesign Revit Forum goes Live)
  • 5.1 2003 05
  • 5.5 2003 04 01 (pseudo mac release screenshot, April Fool's joke...Author unknown)
  • 6.0 2003 12 22
  • 6.1 2004 03 11
  • 2004 05 26 (Zoogdesign Read Only to Merge with AUGI)
  • 7.0 2004 12 13
  • Autodesk Revit Building (New Name)
  • 8.0 2005 02 26ish
  • 8.1 2005 08 12 (web release then withdrawn)
  • 8.1 2005 08 23 (Actual release)
  • 9.0 2006 04 12 (Shipping & Web Release)
  • Autodesk Revit Series (Marketing Bundle w/ AutoCAD)
  • 1.0 2003 12 01 (Revit 6.1)
  • 2.0 2004 XX XX (Revit 6.1)
  • 8.0 2005 XX XX (Revit 8.0)
  • 8.1 2005 XX XX (Revit 8.1, AutoCAD 2006)
  • Autodesk AutoCAD Revit Series 9 – Building (Marketing Bundle w/ AutoCAD)
  • 9.0 2006 04 12 (Revit 9.0, AutoCAD 2007)
  • Revit Architecture 2008 (new name) 2007 04
  • AutoCAD Revit Architecture Suite (Bundle with AutoCAD 2008 ) 2007 04
  • Revit Architecture 2009 2008 04 15
  • AutoCAD Revit Series 2009 2008 04 15
  • Autodesk Revit Architecture 2010 2009 04 16
  • AutoCAD Revit Architecture Suite 2010 2009 04 16
  • Autodesk Revit Architecture 2011 2010 04 16
  • AutoCAD Revit Architecture Suite 2011 2010 04 16
  • Autodesk Revit Architecture 2012 2011 04 11
  • Autodesk Revit Architecture Suite 2012 2011 04 11
  • Autodesk Building Design Suite 2012 (includes all Revit versions)
  • Autodesk Building Design Suite 2013 (includes all Revit versions)
  • Autodesk Building Design Suite Premium 2014 (includes all Revit versions)
  • Autodesk Building Design Suite Ultimate 2014 (includes all Revit versions)
  • Autodesk Building Design Suite Premium 2015 (includes all Revit versions)
  • Autodesk Building Design Suite Ultimate 2015 (includes all Revit versions)

Structural Version of Revit

  • Autodesk Revit Structure (New Application)
  • 1.0 2005 06 07
  • 2.0 2005 08 23
  • 3.0 2006 04 12
  • Autodesk AutoCAD Revit Series 3 – Structure (Marketing Bundle w/ AutoCAD)
  • 3.0 2006 04 12 (RS 3 & AutoCAD 2007)
  • Revit Structure 2008 (New Name) 2007 04
  • AutoCAD Revit Structure Suite 2008 (Bundle with AutoCAD 2008 ) 2007 04
  • Revit Structure 2009 2008 04 15
  • AutoCAD Revit Structure Series 2009 2008 04 15
  • Autodesk Revit Structure 2010 2009 04 16
  • Autodesk Revit Structure 2011 2010 04 16
  • Autodesk Revit Structure Suite 2011 2010 04 16
  • Autodesk Revit Structure 2012 2011 04 11
  • Autodesk Revit Structure Suite 2012 2011 04 11
  • Autodesk Building Design Suite 2012 2011 tba (includes all Revit versions)
  • Autodesk Building Design Suite 2013 (includes all Revit versions)
  • Autodesk Building Design Suite Premium 2014 (includes all Revit versions)
  • Autodesk Building Design Suite Ultimate 2014 (includes all Revit versions)
  • Autodesk Building Design Suite Premium 2015 (includes all Revit versions)
  • Autodesk Building Design Suite Ultimate 2015 (includes all Revit versions)
(I don't include the MEP version of Revit here as I don't tackle this)

2.12.2024

Unmasking the BIM Heroes: A Deep Dive into the World of Building Information Modeling

1. Introduction: The Dawn of BIM Heroes

 In the realm of architecture, engineering, and construction (AEC), a new breed of heroes has emerged. They are the BIM Heroes, champions of Building Information Modeling (BIM). This post aims to unmask these heroes, shedding light on their roles, their tools, and the impact they have on the AEC industry. BIM Heroes are not your typical superheroes. They don’t wear capes or masks, but they do possess a powerful tool: BIM. This technology is revolutionizing the way we design, construct, and manage buildings.

2. The Genesis of BIM Heroes

The birth of BIM Heroes can be traced back to the advent of BIM technology. As the AEC industry began to embrace digital transformation, the need for professionals skilled in BIM became apparent. Thus, the BIM Heroes were born. BIM Heroes are the vanguards of this digital revolution. They are the architects, engineers, and construction professionals who have mastered the art and science of BIM.

3. The Arsenal of BIM Heroes BIM

Heroes wield an impressive arsenal of tools. From 3D modelling software to collaboration platforms, these tools enable them to create detailed digital representations of the physical and functional characteristics of buildings. These digital models serve as a shared knowledge resource, facilitating decision-making from the earliest conceptual stages through to design, construction, and operation.

4. The Impact of BIM Heroes

The impact of BIM Heroes on the AEC industry is profound. By harnessing the power of BIM, they can improve efficiency, reduce costs, and enhance the quality of construction projects. Moreover, BIM Heroes play a crucial role in promoting sustainability. By using BIM, they can optimize energy efficiency, reduce waste, and minimize the environmental impact of buildings.

5. The Challenges Faced by BIM Heroes

BIM Heroes face several challenges. These include the high cost of BIM software, the need for continuous training, and resistance to change within the industry. However, with their resilience and determination, BIM Heroes are overcoming these obstacles, paving the way for a more sustainable and efficient AEC industry.

6. The Future of BIM Heroes

The future looks bright for BIM Heroes. As BIM technology continues to evolve, so too will the roles and responsibilities of BIM Heroes. With advancements in areas like artificial intelligence and virtual reality, BIM Heroes will continue to push the boundaries of what’s possible in the AEC industry.

7. Becoming a BIM Hero

Becoming a BIM Hero is no easy feat. It requires a deep understanding of BIM technology, a knack for problem-solving, and a commitment to lifelong learning. But for those who are up to the challenge, the rewards are great. Not only will you be at the forefront of a rapidly evolving industry, but you’ll also have the opportunity to shape the built environment of the future.

8. Conclusion: The Legacy of BIM Heroes

In conclusion, BIM Heroes are transforming the AEC industry. Through their mastery of BIM technology, they are improving efficiency, promoting sustainability, and shaping the future of construction. So here’s to the BIM Heroes, the unsung heroes of the AEC industry. May their legacy continue to inspire and drive innovation in the world of building design and construction.

Revit Dynamo vs. Python Scripting: Choosing Your Automation Tool

Both Revit Dynamo and Python scripting are incredibly powerful tools for extending Revit's capabilities, automating repetitive tasks, an...
